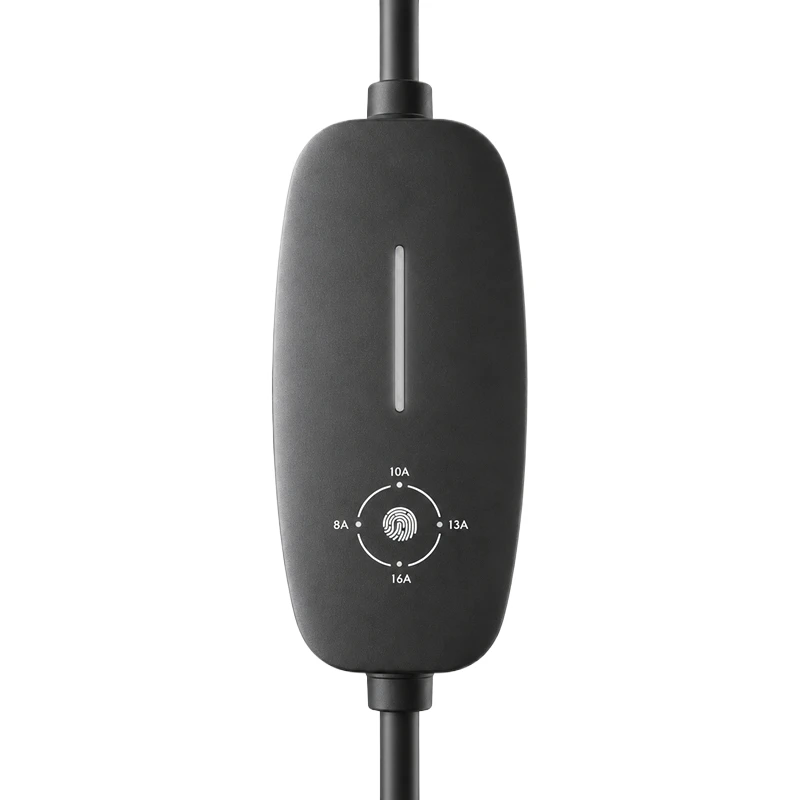

Adjustable Current Portable EV Charger
The EMS2-35-D is a portable EV charger with four adjustable current levels: 8A,10A,13A and 16A. It delivers up to 3.5 kW on a 220–240 V single-phase supply and is available with Type 2 or GB/T vehicle connectors. The 0–12 hour delayed start works without an app, and the IP55 housing and TPE/TPU cable are designed for home, travel and temporary charging.
Parameter
| Parameter | Specification |
|---|---|
| Model | EMS2-35-D |
| Input Voltage | 220–240 V |
| Output Current | 8A / 10A / 13A / 16A |
| Rated Power | 3.5 kW max |
| Working Frequency | 50/60 Hz |
| Phase | Single-phase |
| Vehicle Connector | Type 2 / GB/T |
| Input Plug | [Confirm: Schuko / UK / CEE / NEMA / Type 2] |
| Reserved Time | 0–12 h |
| Cable Length | 3 m / 5 m / 10 m |
| Cable Material | TPE / TPU |
| Waterproof Grade | IP55 |
| Certifications | CE, RoHS; UKCA available on request if applicable |
| Working Temperature | -20°C to +50°C |
| Housing Colour | Optional |
| Pressure Test | Vehicle rolling test passed |
Key Features

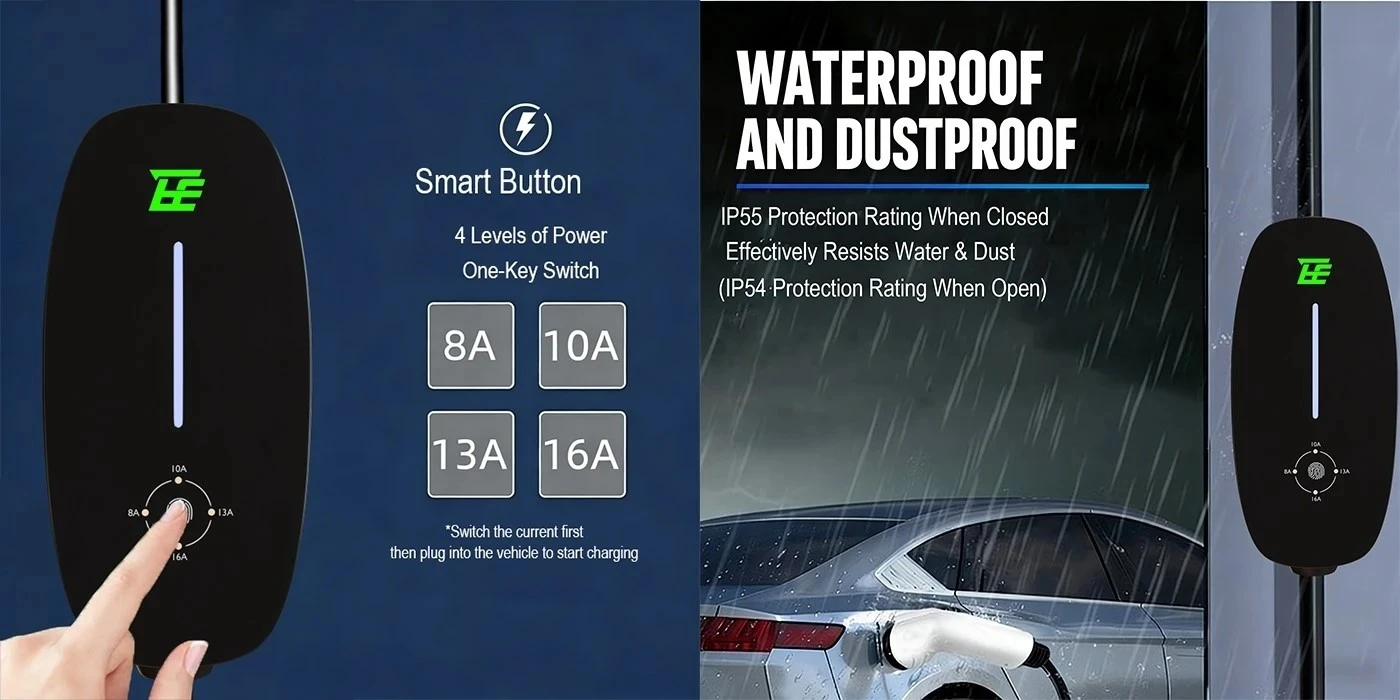

Four adjustable current levels
8A,10A,13A and 16A.This allows safe charging from different sockets and circuits.Use 8A or 10A for standard household sockets with 1.5 mm² wiring. Use 13A or 16A only when the socket and wiring are rated for it.
No installation required
The charger is portable.It does not need a wall bracket,electrician or permanent wiring.It is suitable for renters,travel, backup charging and temporary locations.
0–12 hour delayed start without an app
Users can set a delayed start with the touch buttons. The setting is stored locally, so the charger does not need Wi-Fi or a phone to start on schedule. This helps users take advantage of off-peak electricity rates.
Cold-weather flexible cable
The TPE/TPU jacket is rated for -20°C to +50°C. The cable remains easier to coil in cold weather, which matters for unheated garages and car boots.
Optional housing colours
Standard colours are available, and custom colours can be ordered for bulk purchases. This helps distributors differentiate from generic black or white chargers.
Durability test
The control box has passed a vehicle rolling test. The test report is available for distributors on request.
Applications
- Home charging in older houses
- Renters and apartment users
- Holiday homes and travel charging
- Fleet service vans and roadside assistance
- Temporary sites and events
- Backup charger in the car boot
- Distributors and retailers serving EV drivers
Use Case: Italy Homeowner with an Older Garage Socket
A homeowner in Italy uses the EMS2-35-D as a travel charger for a small electric car. The house has an old garage socket that cannot handle 16A continuously, so the owner sets the charger to 10A when charging overnight at home. When visiting a friend's house with a newer dedicated socket,the owner switches to 16A and charges faster. The charger stays in the boot, and the adjustable current setting means the owner does not have to worry about tripping the breaker at either location.
FAQ
Q: How do I know which current level to use?
A: Check the rating of the socket and the cable behind it. For a standard household socket with 1.5 mm² wiring, use 8A or 10A. For a dedicated 16A socket with 2.5 mm² wiring, use 13A or 16A. If the breaker trips, drop to a lower setting. Always follow local electrical regulations and consult a qualified electrician if unsure.
Q: Can I change the current level while charging?
A: No. Stop the charging session first, change the current setting, then restart the session. Changing the current while charging is not recommended and may cause a fault.
Q: Does the charger remember the last current setting after it is unplugged?
A: Yes. The charger stores the last selected current level. When it is plugged in again, it resumes at the same setting unless the user changes it.
Q: Is the delayed start function easy to set without a manual?
A: The touch buttons are labelled, and the display shows the selected delay time. Most users can set it in under a minute. A quick-start guide is included in the box.
Q: What is the difference between this charger and a wall-mounted unit?
A: This charger is portable and does not require installation. A wall-mounted unit is fixed to a wall and usually delivers higher power. The portable charger is better for renters, travel and temporary locations.
Q: Can I use it with a household socket?
A: Only with the correct input plug for your market and only if the socket and wiring are rated for the selected current. Do not use unapproved adapters. Confirm the input plug configuration before ordering.
